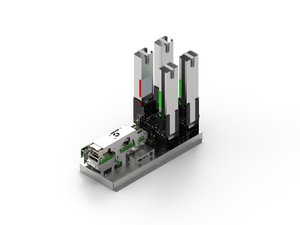

Multi-Hopper Kiosk Card Encoder+ Printer+ Dispenser
KCP-XXXX
Features
- Card Issuing Machine with Monochrome Thermal Printer
- Hybrid card reader/writer for MS, IC and RF
- Monochrome thermal printer (thermal transfer)
- Error card capture function included
- Up to 4 different cards issuing and printing are available (KCP-4000)
- High speed card printing : Up to 600 cards per hour
- Reliable and durable design for industrial use as a mass production
Specification
- Interface
- RS232/USB
- Interface Connector
- RS232 : 9PIN, USB : B Type
- Card Loading Capacity
- KCP-1000: Max 500
- KCP-2000: Max1000
- KCP-4000: Max2000 (In Case of 0.76mm Card)
- Resolution
- 300 DPI(11.8DPM)
- Card Dispensing Time
- MAX 1.2(Sec)
- Encoding RFID Type
- ISO 14443 TYPE A Mifare 1k,4k, Ultralight, Desfire card(Option)
- MS Type
- ISO Track 1,2,3 Read/Write with Low/High-Co
- IC Type
- ISO 7816 T=0,T=1 IC Card Read/Write
- Card Material
- P.V.C, A.B.S, P.E.T, etc.
- Max. Card Thickness
- 0.5 ~ 1.0 mm
- Supply Voltage & Current Consumption
- Without Load : DC 24V - 100mA
- With Load : DC24V - 5A
- Applicable Cards
- Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc.
- Locus
- In the Cabinet
