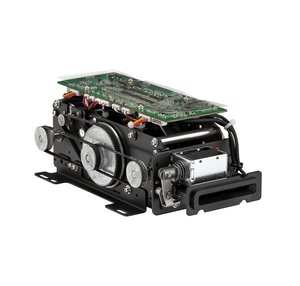

Motorized Magnetic & IC & RF Card Reader /Writer
KYT-3000
Features
- Very Compact motorized reader with mechanical shutter and rear ejection function.
- Read MS cards and read/write contact smart cards & contactless smart cards
- Downloadable firmware upgrade and new smart cards support without exchanging H/W
- EMV level 1 Ver4.3c certified
Specification
- Interface
- RS232/USB
- TTL/Ethernet (only KYT-3000)
- Mag. Card type
- ISO/IEC 7810 ID-1, ISO/IEC 7811-1,-2,-6
- IC Card type
- ISO/IEC 7816-1,-2,-3(T=0,T=1) EMV L1 Ver4.3c
- RF Card Type
- ISO-14443A(Mifare, Ultra light,Mifare Plus)
- Card Feeding Speed
- KST-3000 : 240mm/s
- KYT-3000 : 300mm/s
- Card Thickness
- KST-3000 : 0.76 (±)0.08mm
- KYT-3000 : 0.2mm to 0.84mm
- Supply Voltage & Current Consumption
- Without Load : DC 24V - 100mA
- With Load : DC24V - 2000mA
- Interface connector
- KST-3000 : RS232 : 5PIN, USB: mini B type
- KYT-3000 : RS232 : 5PIN, USB: B type,TTL:50PIN,Ethernet:
- Locus
- In the Cabinet
